Case study

Multifamily Development

Waycross, Georgia · New construction, 16-unit apartment building

A new two-story, 16-unit (all one-bedroom) apartment building on a 1.19-acre site. Scope covered architectural and structural drawings plus plumbing, electrical, HVAC, fire/smoke detection, and low-voltage data, a full permit set produced end to end.

ArchitecturalStructuralMEPSign, Stamp & Seal
Sheet 1 of 5
Multifamily Development, sheet 1 of 5
1 / 5
Multifamily Development, sheet 2 of 5
2 / 5

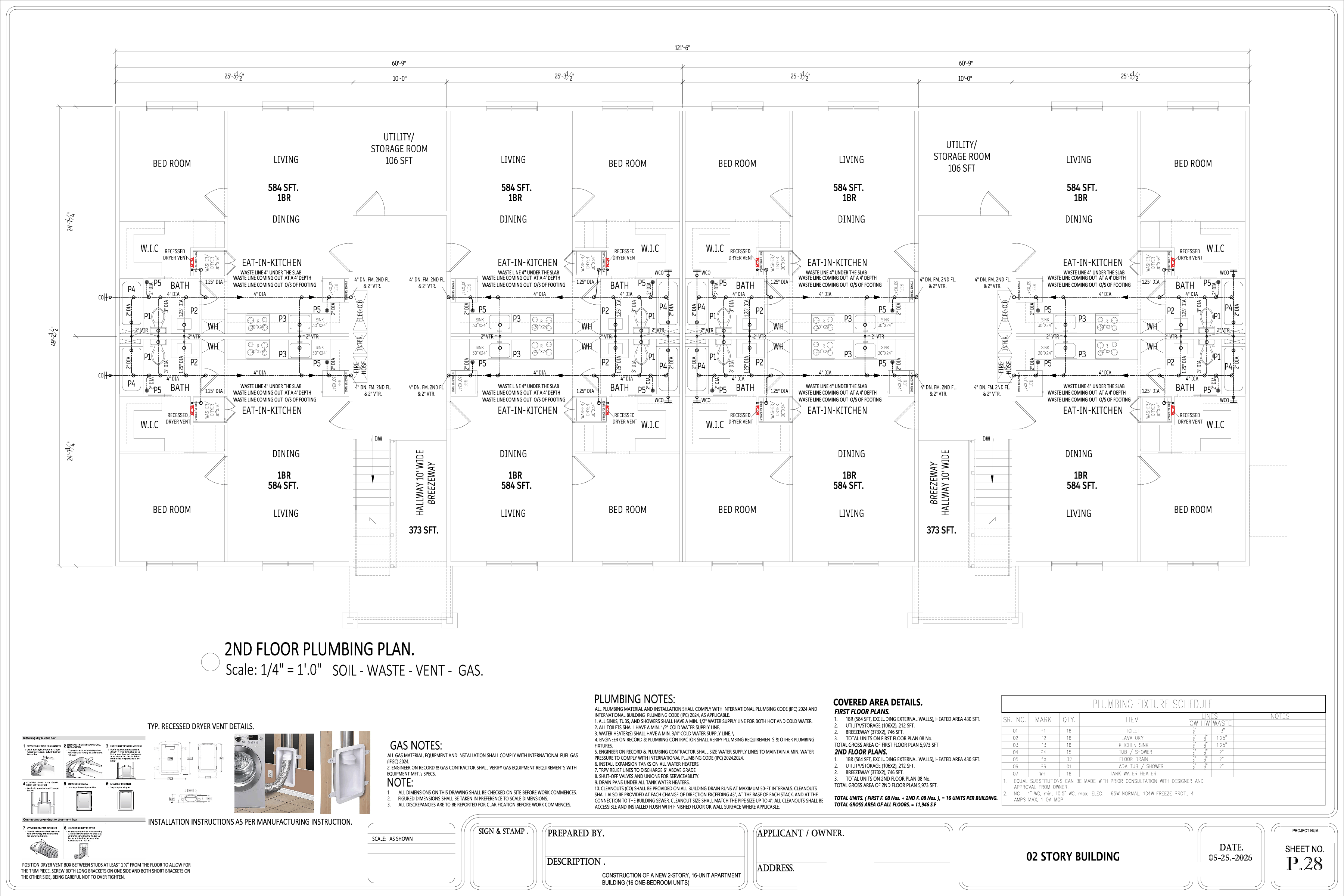

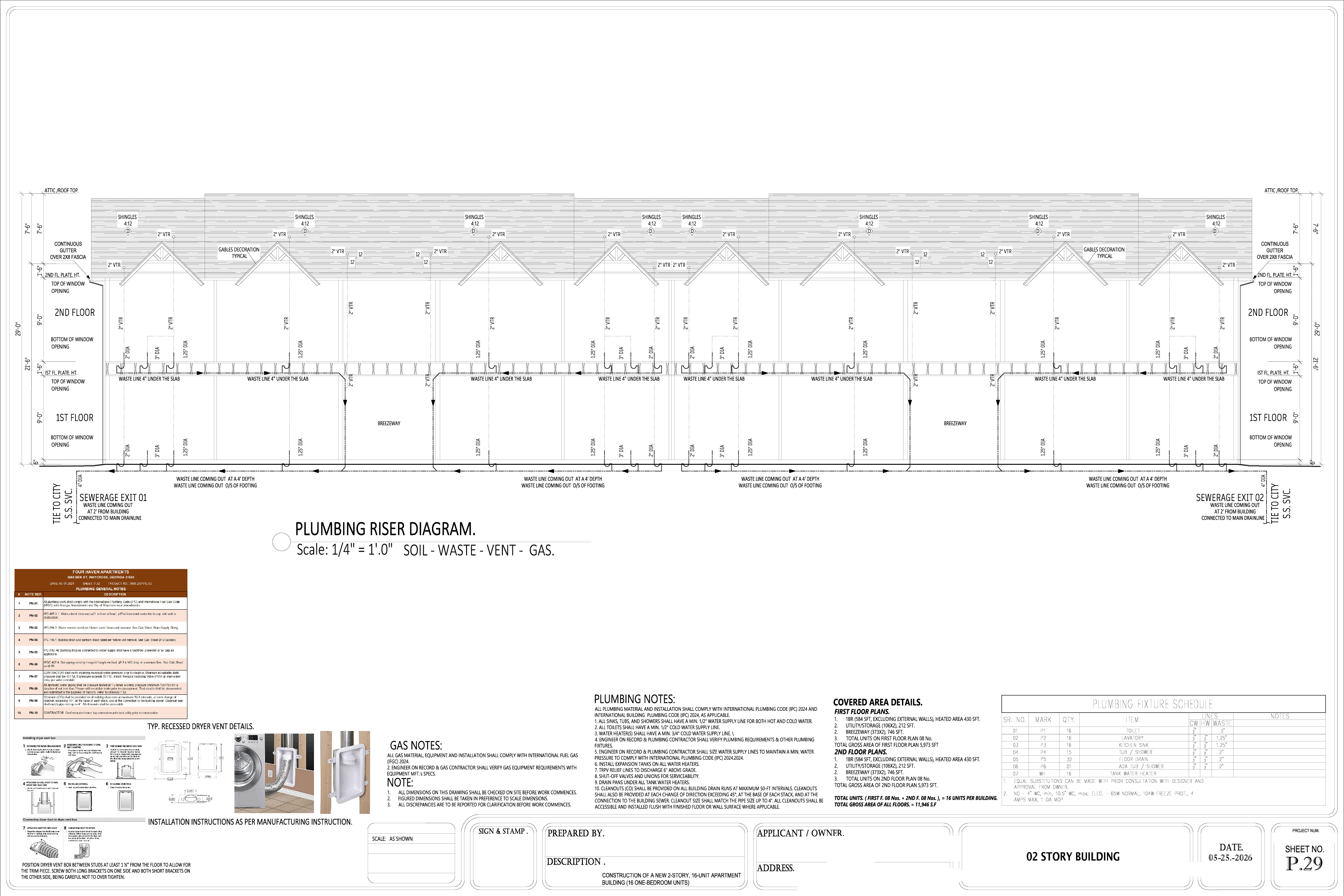

Multifamily Development, sheet 3 of 5
3 / 5

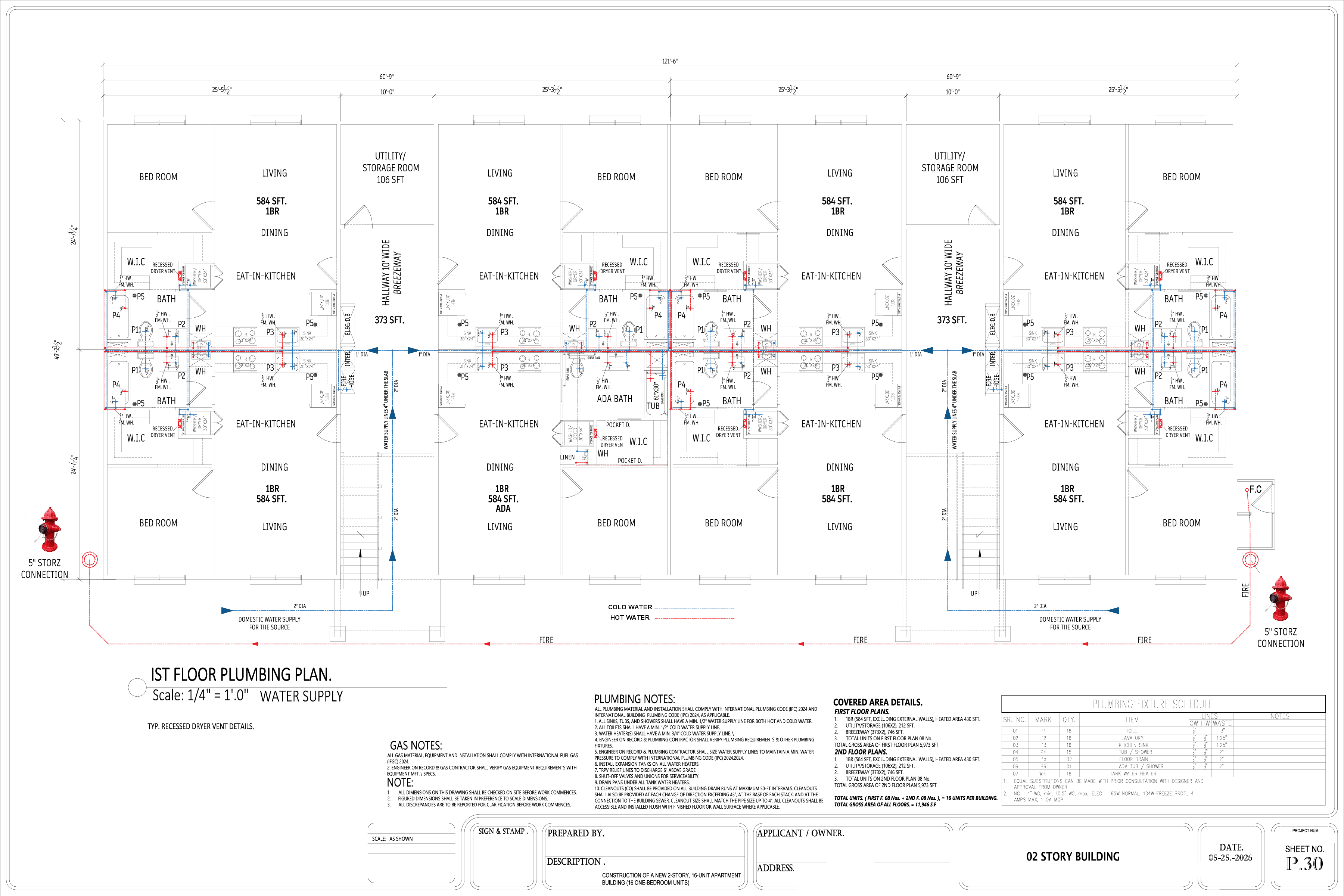

Multifamily Development, sheet 4 of 5
4 / 5

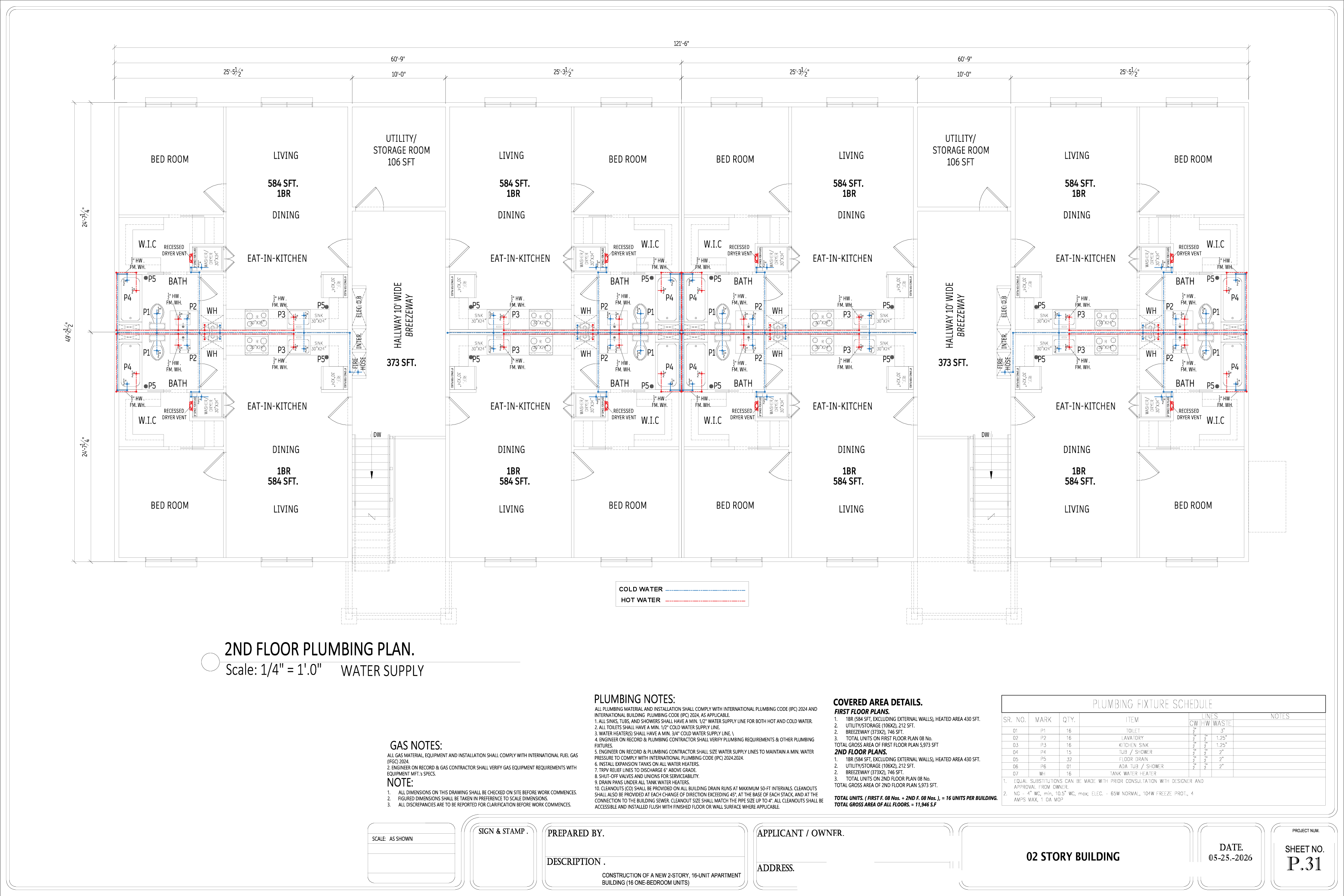

Multifamily Development, sheet 5 of 5
5 / 5

A selection of sheets from the permit set, shown at screen resolution.
